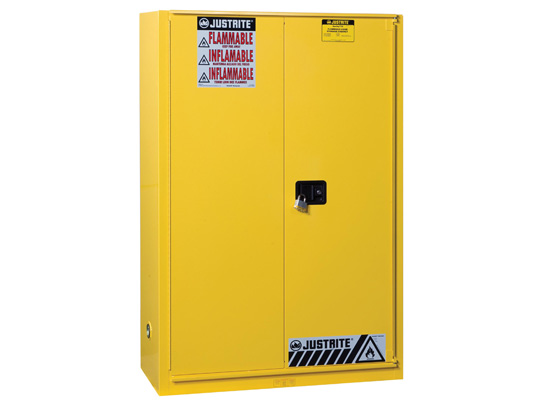

Sure-Grip® EX Flammable Safety Cabinet, Cap. 45 gallons, 2 shelves, 1 bi-fold s/c door
| High performance, market leading cabinets in most popular sizes | ||||||
| Model No. and Color Options: | ||||||
 |
 |
|||||
| YELLOW | RED | |||||
| 894580 | 894581 | |||||
Product Overview
Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
For added security, U-Loc™ handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.
All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.
Most cabinets are FM approved and all come with a ten-year warranty.
Attributes and specs
| ATTRIBUTE | SPECIFICATION | ||||||
| Model No. and Color Options: | 894580 (Yellow), 894581 (Red) | ||||||
| Equivalent International Model No: | 8945801 (Yellow) | ||||||
| Material Specifications: | 18 Ga CR Steel | ||||||
| Capacity: | 45 gallon(s) | ||||||
| 170 liter(s) | |||||||
| No. of Doors: | 1 | ||||||
| Door Type: | Sliding, Self-Close | ||||||
| No. of Shelves: | 2 | ||||||
| Adjustable Shelves: | Yes | ||||||
| Dimensions, Exterior: | 43″ W x 65″ H x 18″ D | ||||||
| 1092 W x 1651 H x 457 D (mm) | |||||||
| Dimensions, Interior: | 39.5″ W x 60.5″ H x 14.562″ D | ||||||
| 1003 W x 1537 H x 370 D (mm) | |||||||
| Approvals: | FM | ||||||
| Compliance: | NFPA, OSHA, U (NFPA) | ||||||
